EAGLE PLUS-i Satellite Assembly

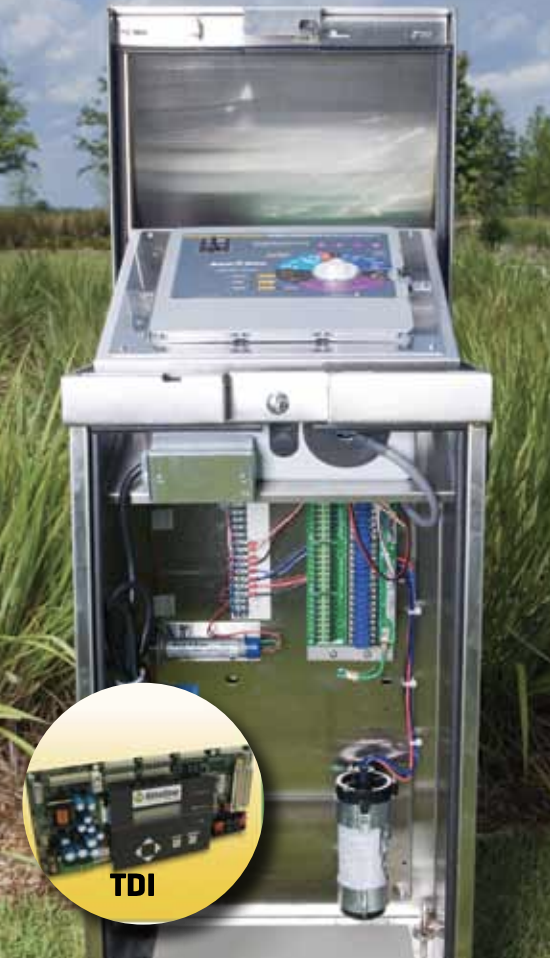

SiteOne Green Tech prefabricated custom built Satellite Assemblies set the standard for simplified professional installation by pre-installing the ESP-SAT controller plus optional equipment in an attractive, heavy-duty, vandalresistant stainless steel enclosure. The installer simply sets the enclosure, connects the 120VAC power source, and lands field wiring within the spacious interior, at the clearly marked terminal interface boards. The entire SiteOne Green Tech prefabricated satellite assembly is UL listed and protected by our 5 year limited warranty.

Specifications

• Compatible with Rain Bird Maxicom® and Site Control® central operating systems featuring automatic weather-based schedule adjustments

• Design assistance, certification of contractor-installed assemblies, technical support & field service provided by SiteOne Green Tech for specifiers, installers and end users

• Choose 24 or 40 conventional station count ESP-SAT; for a decoder system, add SiteOne Green Tech’s 2-wire decoder interface (TDI) option

•Select from multiple hardwire & wireless satellite controller communication options with a variety of antenna styles

• Add remote control capabilities with a built-in receiver and hand-held transmitter for convenient on-site remote controller operation

• Heavy duty valve output boards, primary surge protection and pad-lockable stainless steel enclosures are all standard

• Connect multiple sensor decoders to accept inputs from flow sensors, tipping rain cans, lake level transducers, and more
